LPVT GIS Symmetrical

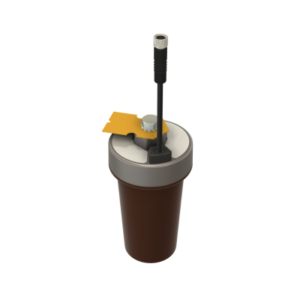

LPVT GIS Symmetrical: Low Power Voltage Transformer for GIS with Symmetric T-Connectors
Cone-type LPVT for GIS with symmetric T-connectors, available for 36 kV, 24 kV, and 12 kV systems.
About this product
The LPVT GIS Symmetrical is a cone-type low power voltage transformer engineered for integration with symmetric T-connectors in gas-insulated switchgear (GIS) installations. Available for 36 kV, 24 kV, and 12 kV systems, it mounts directly into the GIS T-connector interface and delivers a low-energy signal to downstream voltage amplifiers and measuring devices, eliminating the dedicated measurement cubicle. Connector geometry must be verified against the GIS manufacturer's specification prior to ordering. Compliant with IEC 61869-1 and IEC 61869-11; IEC 61869-6 provides historical measurement reference for this product family.
Technical Specifications
| Voltage sensor type | Cone-type LPVT |
| Installation | GIS T-connector interface |
| Connector interface | Symmetric T-connector |
| Rated voltages available | 12, 24 and 36 kV |
| Output signal | 3.25 V or 100 V |
| Accuracy class | Class 0.2 / 0.5 / 1.0 |
| Load impedance | 200 kΩ / 350 pF, 2 MΩ / 50 pF, 47 MΩ / 100 pF |
| Power quality compatibility | 50th harmonic compatible |
| Standards | IEC 61869-1, IEC 61869-11 |
| Downstream compatibility | Voltage amplifiers, IEDs, power quality analyzers |
