Technical products for MV/LV electrical infrastructure.
Separable Connector400TB / 440TB Series
When a screened, symmetrical separable connector is needed to terminate polymeric-insulated MV cables onto Interface C bushings (for gas-insulated switchgear, transformers, or motors up to 42 kV), the Nexans Euromold 400TB and 440TB series is what we specify. The 400TB family covers 16–300 mm² conductors across the 12–42 kV range, while the heavier-duty 440TB family extends up to 630 mm² conductors across the same voltage range.
Separable Connector480TB / 484TB / 489TB Series
When a compact, asymmetric separable connector is needed for the same Interface C bushings as the 400TB/440TB symmetrical range, but across a wider conductor range, the Nexans Euromold 480TB, 484TB, and 489TB series is what we specify. Together they span 16 mm² up to 1200 mm² conductors across the 12–42 kV range.
Separable ConnectorCB Series
When an asymmetric elbow/T-type separable connector is needed across a wide current range (630 A up to 1250 A) for polymeric or XLPE-insulated MV cables up to 42 kV, the NKT CB Series is what we specify. Five models cover 25 mm² up to 1200 mm² conductors, with both onshore and offshore variants available.

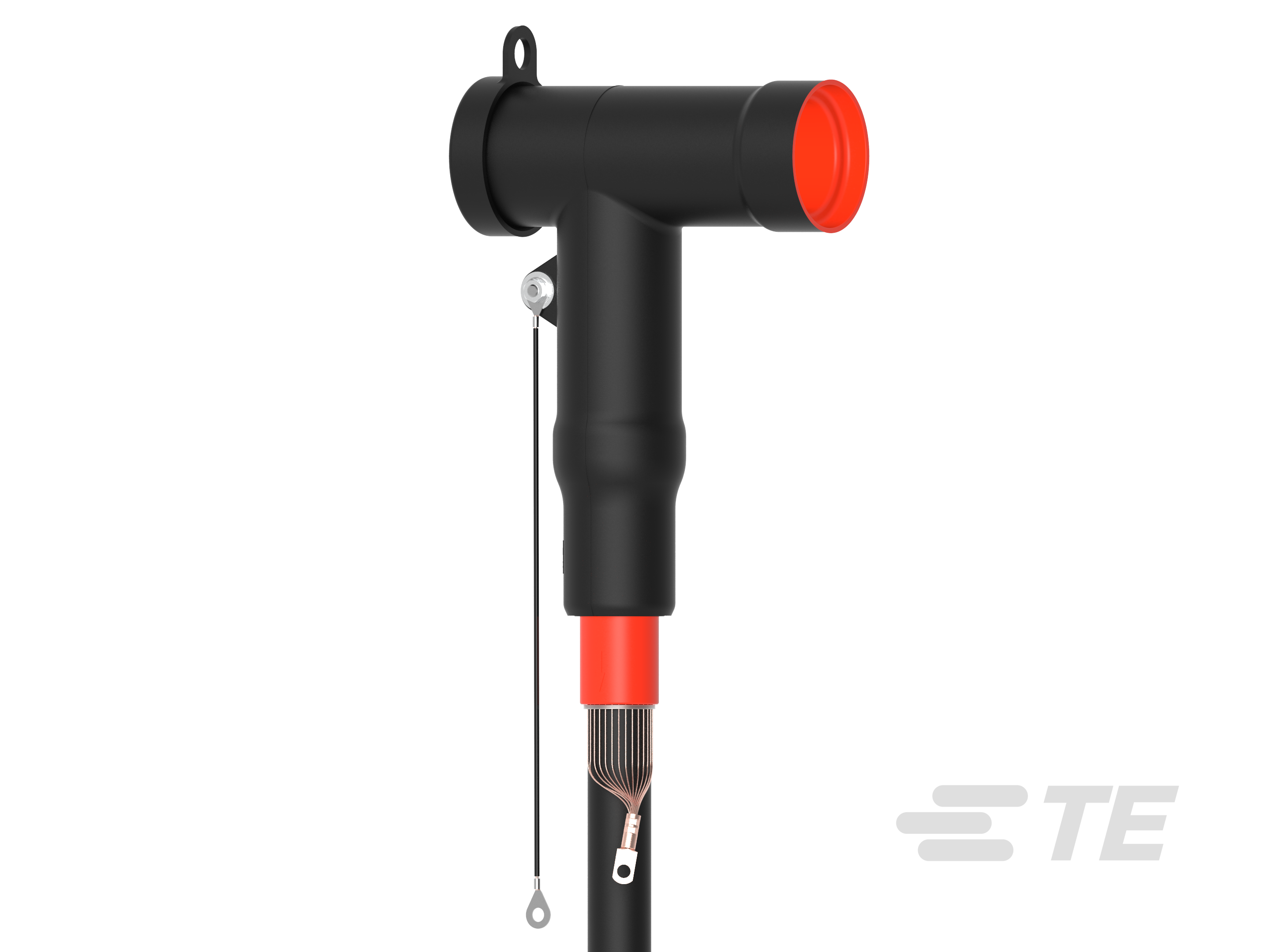

Separable ConnectorRSTI-39xx / 58xx / 59xx / 68xx / 69xx Series
When a screened separable T-connector is needed across a wide voltage and current range (12 kV up to 42 kV, 800 A up to 1250 A) for single- and three-core polymeric-insulated MV cables onto Interface C bushings, TE's Raychem RSTI series is what we specify. The line spans standard-bore models (25 mm²) through large cross-section variants (1000 mm²), all built on one silicone-rubber screened body design.
